junkin safety appliance company

The name in Safety, Rescue and Survival.

Junkin Safety Appliance Company is located in Louisville Kentucky. They have been manufacturing a variety of safety, rescue and survival equipment in the USA since 1932. Their products include Basket Stretchers, Plastic Stretchers, Aluminum Break-apart Stretchers, Air-Rescue Stretchers, Aluminum and Steel Pole Stretchers with Vinyl Covers, Stretcher Kits, Stretcher Accessories, Wooden and Polyethylene Backboards, Evacuation Chairs, First Aid Equipment, and Fire Blankets.

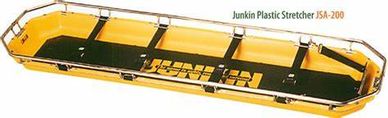

Plastic Stretcher JSA-200

Lightweight Basket Type Stretcher JSA-300

Break-Away Plastic Stretcher JSA-200-B

Yellow high-density polyethylene shell, supported by a stainless steel outer rail, permanently attached with stainless steel semi-tubular rivets. Features molded runners, fully exposed outer rail, non-absorbent foam pad secured to stretcher and four patient restraint straps. Ideal for unusually rugged rescue situations such as industrial, mining or construction. Patent Pending.

Also available in red

DIMENSIONS: 84-1/2" L X 24" W X 7-1/2" H

WEIGHT: 31 LBS.

LOAD CAPACITY: 1200 LBS.

Break-Away Plastic Stretcher JSA-200-B

Lightweight Basket Type Stretcher JSA-300

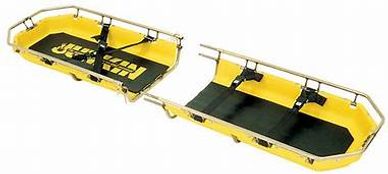

Break-Away Plastic Stretcher JSA-200-B

The same construction as JSA-200. Designed to rescue injured persons from locations where lengthy foot travel is mandatory. The stretcher breaks into two halves which can be back-packed to the point of rescue and assembled in seconds. Positive-locking quick-release pins secure two halves together. Four straps are standard.

Also available in red

DIMENSIONS: 84-1/2" L X 24" W X 7-1/2" H

WEIGHT: 32 LBS.

LOAD CAPACITY: 1200 LBS.

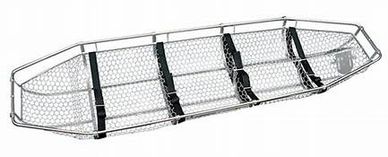

Lightweight Basket Type Stretcher JSA-300

Nylon web straps at chest, abdomen, thigh, and calf. Adjustable footrests for vertical lifting. Frame is 5/8" steel tubing; cross braces and runners 3/16" x 3/4" flat steel. Basket is 18 gauge, 1" hexagon mesh netting.

DIMENSIONS: 82" L; 8-1/2" H.

WIDTHS: CHEST: 24-1/2"

ABDOMEN 24"

THIGH 23-1/2"

CALF 23"

CARTON SIZE: 83" X 24" X 9"

WEIGHT: 31 LBS.

LOAD CAPACITY: 1500 LBS.

Stretcher Bridle Sling

Flotation Stretcher Collar JSA-303

Lightweight Basket Type Stretcher JSA-300

The JSA-300-X Stretcher Bridle Sling provides horizontal or vertical lifting capacity of up to 2,500 lbs. Made of 1" nylon webbing resistant to moisture and fungus rot with forged snap hooks and 3" ID forged steel suspension ring.

WEIGHT: 4 LBS.

LOAD CAPACITY: 2500 LBS.

Comfo-Pad JSA-302

Flotation Stretcher Collar JSA-303

Made of 1/2" foam rubber, sturdy nylon cover in orange color. Designed to fit all Junkin JSA 300 Splint Stretchers. Provides added comfort for patient. Held in place with hook and loop type fasteners and is easily removed for cleaning.

WEIGHT: 1 LB. CAN SHIP VIA UPS

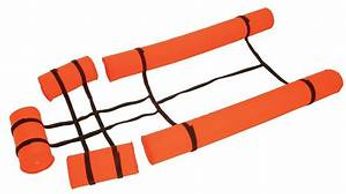

Flotation Stretcher Collar JSA-303

For use with all Junkin JSA-300 series Splint Stretchers to provide flotation during patient handling in water. Easily attached with hook and loop type fasteners to any Stokes type stretcher. Flotation bats are Dow Etha Foam® and covered in orange colored nylon.

WEIGHT: 3 LBS. CAN SHIP VIA UPS.

Junkin Folding Plastic Backboard JSA-366

DIMENSIONS: FOLDED 37-1/4" L X 16" W X 3" THICK

UNFOLDED 74-1/4" L X 16" W X 1-3/4" THICK

CAPACITY: 375LBS.

SHIPPING WEIGHT:: 13 LBS

Plastic Backboard JSA-365

Junkin Folding Plastic Backboard JSA-366

Rugged one piece lightweight polyethylene spineboard with twelve large hand holes for easy handling, built in runners, low profile and X-ray translucent.

Comes with 4 straps.

Color: Bright Yellow

DIMENSIONS: 72" L X 16" W

WEIGHT: 15 LBS.

LOAD CAPACITY: 400 LBS.

Plastic Backboard JSA-365-S

Junkin Folding Plastic Backboard JSA-366

Plastic Backboard JSA-365-S

Rugged one piece lightweight polyethylene spineboard with twelve large hand holes for easy handling, built in runners, low profile and X-ray translucent.

With Speed Clip Pins (Not Shown) Straps not included.

DIMENSIONS: 72" L X 16" W

WEIGHT: 15 LBS.

LOAD CAPACITY: 400 LBS.

Fire Blanket Kit JSA-1000-W

Wrap Around Fire Blanket Kit JSA-1010

Plastic Backboard JSA-365-S

Kit consists of Fire Blanket (JSA-1002) 62" x 82" Fire Resistant Treated 80% Wool and 20% Man-made Fiber (weight 3-1/2 lbs.) and sturdy Steel Cabinet (JSA-1000-CW) ready for wall mounting.

Cabinet is bright Red Enamel with White lettering.

DIMENSIONS: 23-7/8" L X 8-1/2" W X 6-1/2" H

WEIGHT: 12 LBS.

CAN SHIP VIA UPS

Wrap Around Fire Blanket Kit JSA-1010

Kit consists of Fire Blanket (JSA-1010-B) Fire Resistant Treated 100% Wool for maximum fire protection and sturdy 20 Ga. Steel Cabinet (JSA-1010-CW) ready for wall mounting..

Cabinet is bright red enamel with white lettering. Viewing hole provided to see if blanket is in place.

The Wrap Around Fire Blanket Kit is designed so a person can insert either arm through the rope loop and, by rotating their body, completely wrap themselves in the fire blanket.

Blanket (JSA-1010-B) and Case (JSA-1010-CW) may be ordered separately. Kit should be wall mounted 6" to 8" from floor. Complete kit meets MIL-B-52309B.

DIMENSIONS: 70-1/2" L X 5-1/4" W X 5" H; BLANKET: 62" X 82"

WEIGHT: 20 LBS. CAN SHIP VIA UPS

Rust Proof Fire Blanket Kit JSA-1006

Wrap Around Fire Blanket Kit JSA-1010

Kit consists of JSA-1002 Fire Blanket and PVC Plastic Canister complete with mounting brackets.

Finished bright red and white lettering. Blanket ejects at bottom when opened.

Rust and dust proof. Designed for use where corrosion and dust are a problem.

DIMENSIONS: DIAMETER: 8", HEIGHT: 24"

WEIGHT: 14 LBS. CAN SHIP VIA UPS
